TIKI-100 Emulator

Screen

Keyboard

Machine Settings

Boot: Floppy HDD

CPU Speed: Normal (4 MHz) Full Speed

ROM:

FPS: 0

Volume: 50%

Theme:

Scaling: Free resize (may blur pixels)

Floppy Drives

FD0: Empty

FD1: Empty

Mount from catalog:

To drive:

Hard Disks

HD0: Not mounted

HD1: Not mounted

HDD images are also auto-loaded at boot when "Boot: HDD" is selected.

Printer Output

TODO: ESC code detection, PDF export, print-end detection.

Keyboard Map

TIKI-100 Special Keys:

TIKI Key	PC Key	Alt Shortcut
GRAFIKK	F8	Alt+G
BRYT	F10 / Pause	Alt+B
ANGRE	F9	Alt+A
LOCK	CapsLock / F7	Alt+L
HJELP	F11	Alt+H
UTVID	Insert / F12	Alt+U
SLETT	Backspace / Delete	-

Norwegian Characters:

TIKI Key	PC Key (Nordic layout)
Aa	[ (BracketLeft)
Oe	; (Semicolon)
Ae	' (Quote)

Navigation:

TIKI Key	PC Key
Arrow keys	Arrow keys
PgUp / PgDn	PageUp / PageDown
Home	Home
Tab Right	Tab

About TIKI-100

The TIKI-100 was a Norwegian CP/M-compatible computer launched in 1984 by Tiki Data.

CPU:Zilog Z80A @ 4MHz RAM:64 KB + 32 KB VRAM ROM:TIKI-ROM V2.03 W Sound:AY-3-8912 PSG FDC:FD1771 HDC:WD1010

Original emulator by Asbjorn Djupdal (2000-2001).
Z80 CPU by Marat Fayzullin.
AY-3-8912 sound from MAME (Couriersud).
WD1010 HDC from RetroCore (Ronny Hansen).

github.com/HackerCorpLabs/tiki100

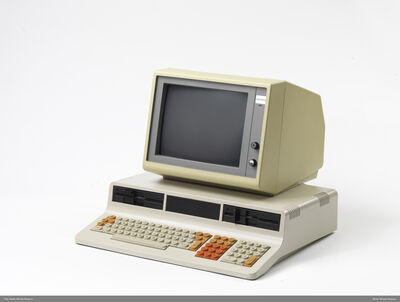

Photo: Digitalt Museum (NTM 18093)

Machine Info

CPU: Zilog Z80A @ 4MHz RAM: 64 KB + 32 KB VRAM ROM: TIKI-ROM V2.03 W Video: 1024/512/256 x 256 Sound: AY-3-8912 FDC: FD1771 HDC: WD1010
